W-520 Cutout Covers

For Polymer or Porcelain Bushings




W-520 Cutout Covers Minimize Animal-Related Outages!

W-520 Cutout Covers are Outage Protection devices that are designed and tested to minimize animal related outages without compromising equipment performance.

All of Rauckman’s animal mitigation devices (both birds and squirrels, etc.) increase reliability while greatly decreasing unplanned interruptions of electric utility service.

Cutout Cover is designed to fit on most distribution voltage cutouts using Polymer or Porcelain bushings of cutout switches.

W-520 Cutout Cover

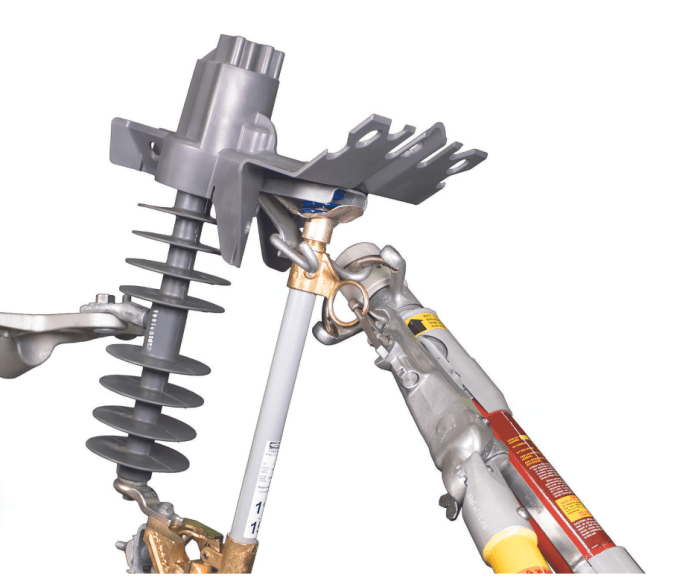

Model W-520 Snap-on Cutout Cover Shown Installed on a Polymer Bushing Cutout

W-520 Cutout Covers Features:

  • Fit major manufacturer’s Porcelain and Polymer type cutouts up to 38 kV

  • UV — High Ultra-Violet stability including Hindered Amine Light Stabilization (HALS)

  • High Dielectric — Superior Electrical Properties by using a track-resistant high dielectric material that remains stable even in the most severe environments

  • Flame Retardant — meets the V-0 criteria of Underwriters’ Laboratory Standard of UL-94 Flammability of plastics

  • Installation — the W-520 Cutout Covers can be installed using a shotgun stick or rubber gloves.

  • Construction — one-piece construction with no pins or buttons with ample room for the use of portable load-break tools

For more information or to place an order:

Specifications & Cat. No

Cat No.DescriptionMaterialColorOverall Dim.Weight EachUnits in
Std. Box
W-520Cutout CoverRUPP0014Grey8.25" H x 7.50" W x 15.00" L12.9 oz12
