Switching Disconnect Hotsticks, One-Piece
Description
Switching Disconnect Hotsticks are used to operate a wide variety of overhead and underground apparatus including cutouts and switches.
These tools are some of the most fundamental hotstick with the design dating back to the early 1900’s when these live-line tools were made of wood.
Hotstick with Switching Head

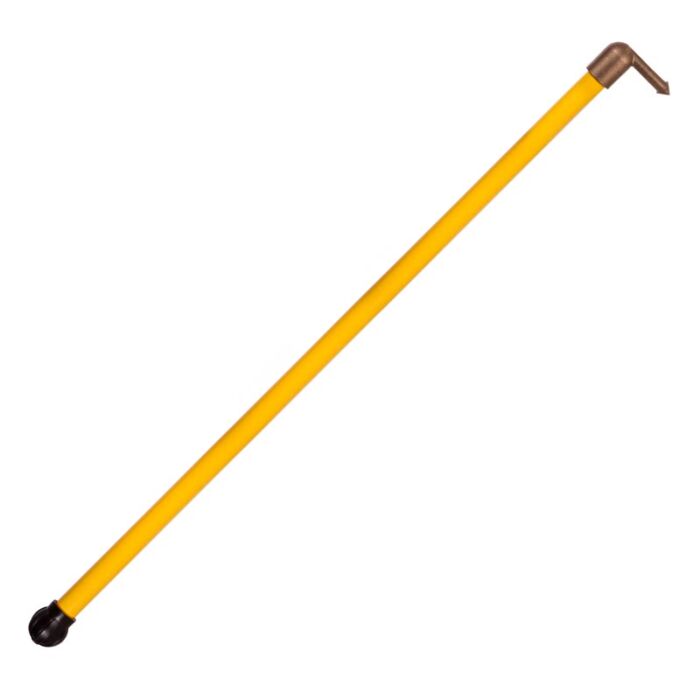

Hotstick with Disconnect Head
Switching Disconnect Hotsticks Available Options:
Switching Disconnect Hotsticks are offered in two diameters; 1 1/4″ and 1 1/2″. The 1 1/4″ model has two different head styles available; “Switch Stick” style and “Disconnect” style.
The Switch Stick style has a notch specifically designed to fit the trunnion of a cutout fuse tube to aid in engagement when replacing a fuse tube.
The insulating portion of these switching disconnect hotsticks (yellow poles) meet ASTM F-711 and are constructed of electrical grade fiberglass reinforced thermoset resins that surround a uni-cell foam core.
These Hotsticks are manufactured by Rauckman Utility Products in the United States of America and are part of Hotline Tools line of products from Rauckman Utility.
Refer to the product brochure (documents tab) for complete list of available options, lengths and their model numbers.
ASTM F-711 Rated Poles
The insulating portion of the Switching Disconnect Hotsticks meet ASTM F-711 and are constructed of electrical grade fiberglass reinforced thermoset resins that surround a uni-cell foam core.
Specifications & Cat. No
| Catalog No. | Fittings/Description | Pole Dia. | Nominal Length | Overall Length | Approx. Weight lb. |
|---|---|---|---|---|---|
| RHW112504WC | Switch Stick Head, End Cap | 1.25" | 4'0" | 4'1" | 2.4 |
| RHW112506WC | Switch Stick Head, End Cap | 1.25" | 6'0" | 6'1" | 3.3 |
| RHW112508WC | Switch Stick Head, End Cap | 1.25" | 8'0" | 8'1" | 4.3 |
| RHW112510WC | Switch Stick Head, End Cap | 1.25" | 10'0" | 10'1" | 5.2 |
| RHW112512WC | Switch Stick Head, End Cap | 1.25" | 12'0" | 12'1" | 6.1 |
| RHW112514WC | Switch Stick Head, End Cap | 1.25" | 14'0" | 14'1" | 7.1 |
| RHD112504DC | Disconnect Head, End Cap | 1.25" | 4'0" | 4'1" | 2.5 |
| RHD112506DC | Disconnect Head, End Cap | 1.25" | 6'0" | 6'1" | 3.5 |
| RHD112508DC | Disconnect Head, End Cap | 1.25" | 8'0" | 8'1" | 4.4 |
| RHD112510DC | Disconnect Head, End Cap | 1.25" | 10'0" | 10'1" | 5.4 |
| RHD112512DC | Disconnect Head, End Cap | 1.25" | 12'0" | 12'1" | 6.3 |
| RHD112514DC | Disconnect Head, End Cap | 1.25" | 14'0" | 14'1" | 7.2 |
| RHD115006DC | Disconnect Head, End Cap | 1.50" | 6'0" | 6'1" | 4.0 |
| RHD115008DC | Disconnect Head, End Cap | 1.50" | 8'0" | 8'1" | 5.1 |
| RHD115010DC | Disconnect Head, End Cap | 1.50" | 10'0" | 10'1" | 6.2 |
| RHD115012DC | Disconnect Head, End Cap | 1.50" | 12'0" | 12'1" | 7.3 |
| RHD115014DC | Disconnect Head, End Cap | 1.50" | 14'0" | 14'1" | 8.4 |
| RHD115016DC | Disconnect Head, End Cap | 1.50" | 16'0" | 16'1" | 9.4 |
| RHD115018DC | Disconnect Head, End Cap | 1.50" | 18'0" | 18'1" | 10.5 |
| Catalog No | Fittings/Description | Pole Dia. | Approx. Weight |
|---|---|---|---|
| R3046 | Switch Stick Head | 1.25" | 6.7 oz |
| R31461 | Disconnect Head | 1.25" | 8.5 oz |
| R30462 | Disconnect head | 1.50" | 11.2 oz |
| RBBG-32 | Rubber End Cap | 1.25" | 1.6 oz |
| RBBG-38 | Rubber End Cap | 1.50" | 2.7 oz |
