Application Max Voltage
38 kV Phase-to-Phase
22 kV Phase-to-Ground
MADE IN THE USA
Silicone Conductor Covers
Description
Silicone Conductor Covers Minimize Animal-Related Outages!
Silicone Conductor Covers are Outage Protection devices that are designed and tested to minimize animal related outages without compromising equipment performance. All of Rauckman’s animal mitigation devices increase reliability while decreasing unplanned interruptions of service.
System interruptions and equipment failures caused by wildlife such as squirrels and birds and incidental vegetation contact can be minimized by the use of Conductor Covers. Color, Flexibility, and Dielectric Strength are maintained even in severe Ultra-Violet conditions. All characteristics are maintained after 2500 hours in ASTM G-154 UV and Humidity test conditions.
Silicone Conductor Covers Features:
Conductor Covers are track resistant
Made from silicone specially formulated for the rigorous requirements of the electric utility industry

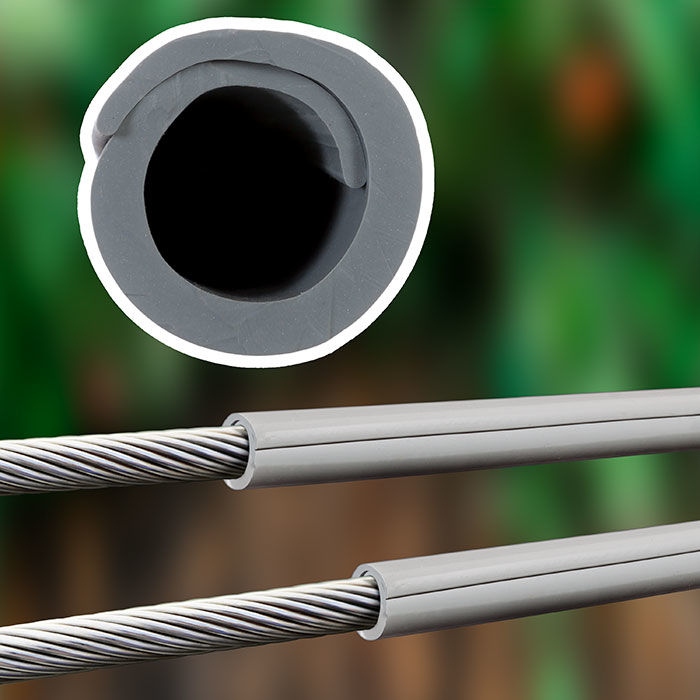

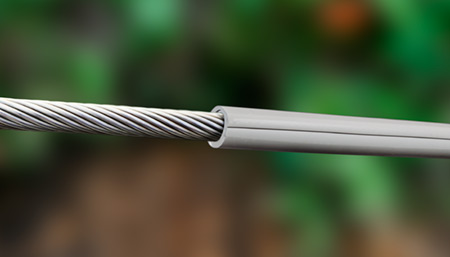

The conductor covers are pre-slit with a generous material overlap. The overlapping is created using a unique manufacturing process that provides material memory while preserving flexibility.

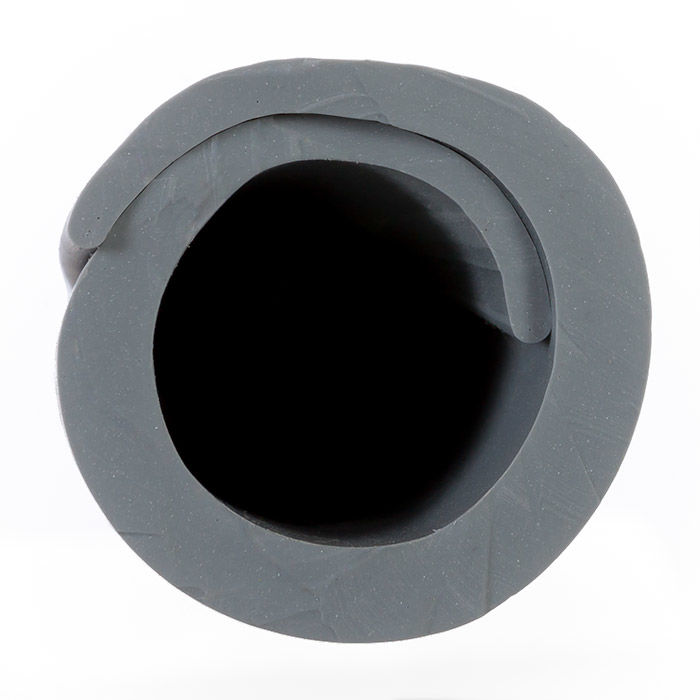

Silicone Conductor Cover Cross Section View
All characteristics are maintained after 2500 hours in ASTM G-154 UV and Humidity test conditions
Available Colors are Grey and Red
Available Colors – Grey and Red
The conductor covers are available in 4 different diameters (0.40″, 0.75″, 1.00″, and .75″) and come in standard lengths. Conductor covers can be easily cut-to-length in the field as needed.
Specifications & Cat. No
| Cat No. | I.D. Size Relaxed | Wall Thickness | Color | Weight / Ft | Std. Package Qty | Std. Package Put-Up |
|---|---|---|---|---|---|---|
| RCC-040G | 0.40" | 0.200" | Grey | 0.25 lbs. | 100' | Two 50' Coils |
| RCC-075G | 0.75" | 0.200" | Grey | 0.62 lbs. | 50' | Two 25' Coils |
| RCC-100G | 1.00" | 0.200" | Grey | 0.85 lbs. | 25' | One 25' Coil |
| RCC-175G | 1.75" | 0.200" | Grey | 0.95 lbs. | 24' | Six 4' Pieces |
| RCC-040R | 0.40" | 0.200" | Red | 0.25 lbs. | 100' | Two 50' Coils |
| RCC-075R | 0.75" | 0.200" | Red | 0.62 lbs. | 50' | Two 25' Coils |
| RCC-100R | 1.00" | 0.200" | Red | 0.85 lbs. | 25' | One 25' Coil |
| RCC-175R | 1.75" | 0.200" | Red | 0.95 lbs. | 24' | Six 4' Pieces |
| Specifications | |
|---|---|
| Material: | Silicone Rubber |
| Flammability: | UL 94 V-0 Non-Flammable |
| Hardness: | Durometer 65 +/-5 |
| Tensile Strength: | 600 psi |
| Elongation: | 200% |
| Brittle Point: | -90° C |
| Available Colors: | Grey & Red |
| Construction: | Powder Free |
| UV Stabilization: | Superior |
