Plastic Insulating Cover Up

Rigid Conductor Covers are 100% factory tested to ASTM F712 requirements.

MADE IN THE USA

MADE IN THE USA

Description

Plastic Insulating Cover are rigid covers (aka Orange Plastic Conductor Covers) that are installed on electric conductors to provide insulation for lineman and equipment during live line utility work. The design of the covers allows them to be connected together in long chain to provide long insulation on the conductors as shown in the photo below.

Plastic Insulating Cover Up Conductor Covers are 100% factory tested to ASTM F712 requirements

Plastic Insulating Cover can easily be installed using Grip-All (shotgun) stick attached to the Hotstick handle of the cover.

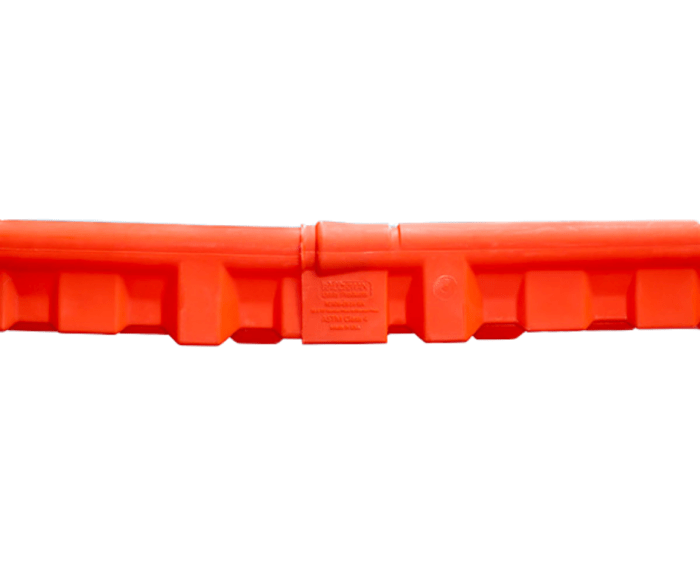

Conductor Covers couple with other brands of rigid cover-up and rubber insulating covers

The Plastic Insulating Cover can couple with other like covers to create a longer protected area AND they are designed to couple with other brands of rigid cover-up and rubber insulating covers also. This allows the covers to be mixed with variety of brands of covers.

Part of Hotline Tools line up, these rigid conductors are 100% factory tested to ASTM F712 requirements.

100% TESTED!

ASTM F712

Plastic Insulating Cover Up Features:

Plastic insulating Cover Up Features
  1. Bell-Type” end for accepting Rauckman and other rigid and flexible covers
  2. Ribs for creating an air gap between the conductor and cover
  3. Tapered lead-in for easy interlocking with other covers and engaging conductors
  4. ASTM Ratings permanently molded on the cover
  5. Hotstick handle for grip-all (shotgun) stick. The handle can be locked in various angular positions for ease of use and maneuvering with a shotgun stick.

*NOTE — Plastic Insulating Cover, Model No. RC406-0514GA (above photo) is equipped with a factory installed hotstick handle. Plastic Insulating Cover, Cat No. RC406-0514 Cover-Up does not have a handle but the handle is available as a kit (Cat No. R406-GAK) that can be added in the field.

Grip-All Hotstick Handle Kit

*Grip-All Hotstick Handle is also available as a kit

For more information or to place an order:

Specifications & Cat. No

Cat No.DescriptionASTM F 712 ClassASTM F 712 Max Rating Voltage - Covered Phase to Covered PhaseWeight oz
RC406-0181GA5 ft Conductor Cover with Grip-All Adapter326.4 kV4.2
RC406-01815 ft Conductor Cover with 4 ft Handle326.4 kV5.2
RC406-01845 ft Conductor Cover without Grip-All Adapter326.4 kV3.7
RC406-0514GA5 ft Conductor Cover with Grip-All Adapter436.6 kV4.4
RC406-05145 ft Conductor Cover without Grip-All Adapter436.6 kV3.9
R406-GAKGrip-All Adapter Kit--0.5
