Conduit Riser Cover

Stop animals accessing and entering the conduit risers

MADE IN THE USA

MADE IN THE USA

US PATENT 9,787,071

Description

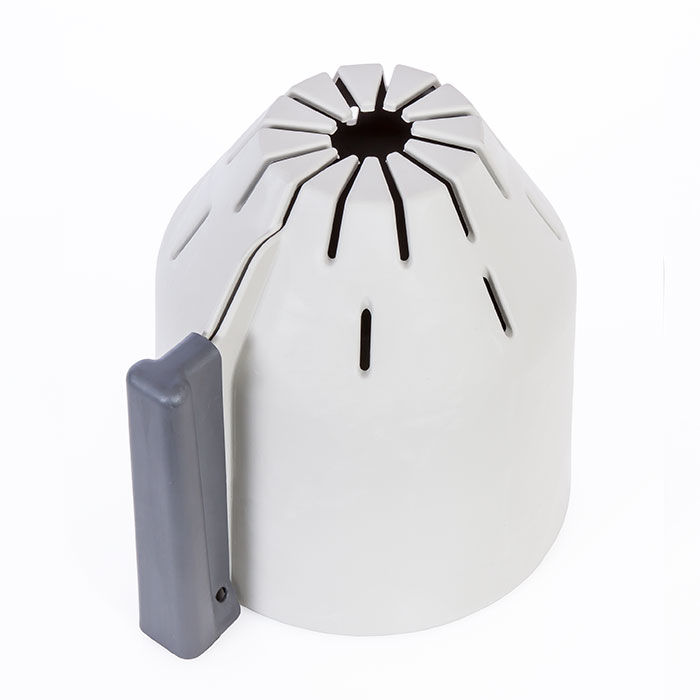

Conduit Riser Cover, part of Rauckman’s line of wildlife protection devices, is designed to stop animals accessing and entering the conduit risers. This will reduce the debris accumulation that can reduce the system reliability.

Unique Flexible Fingers on Top and Bottom Allow Proper Fit

Flexible Fingers on Top and Bottom

Unique Flexible Fingers on Top and Bottom of the covers allow proper fit over a wide diameter range so the covers can also be used on larger bushings to reduce the distribution equipment failures caused by wildlife and incidental vegetation contact.

Conduit Riser Cover is track resistant since it is made from a silicone enriched elastomer specially formulated for the rigorous requirements of the electric utility industry.

Conduit Riser Cover Applications:

Conduit Riser — Conduit Riser Covers are molded to include unique flexible fingers on the top and bottom of the covers. The bottom fingers allow the covers to properly fit over a wide range of conduit diameters as shown in the table below. The top fingers can fit on single or multiple cables.

Large Bushings — RUP Conduit Riser Covers can also be used to fit over larger bushing skirts to avoid incidental or “brush” contact by animals or vegetation.

Conduit Riser Cover Features:

  • Fits over a wide range of conduit diameters

  • Made of Track Resistant silicone enriched elastomer

  • Higher Ultra-Violet (UV) stability including Hindered Amine Light Stabilization (HALS)

  • Certified to the V-0 criteria of Underwriters’ Laboratory Standard of UL-94

  • Easy to install using the Locking Slide Closure

    Locking Slide Closure Model CRC-100L

    Locking Slide Closure Model CRC-100L

  • Can be used for Conduit Risers and also Large Bushings.

    Installed on a Large Bushing

    Installed on a Large Bushing

Cat No.

Cat No.DescriptionColorWeight EachUnits in
Std. Box
CRC-100Conduit Riser Cover with Locking Slide ClosureGrey11.8 oz24
CRC-100LLocking Slide Closure OnlyGrey0.8 oz1
