Self-Fusing Silicone Tape Squirrel Tape™

Superior Electrical Insulation!

Self-Fusing Silicone Tape Squirrel Tape™

MADE IN THE USA

MADE IN THE USA

Description

Self-Fusing Silicone Tape Squirrel Tape™ Brand is made of specially formulated self-fusing, self-amalgamating silicone rubber.

The Squirrel Tape is part of Rauckman’s line of animal protection products. The tape bonds to itself irreversibly to provide a fully sealed insulating barrier that is resistant to moisture, oxygen, ozone and corona over a wide temperature range.

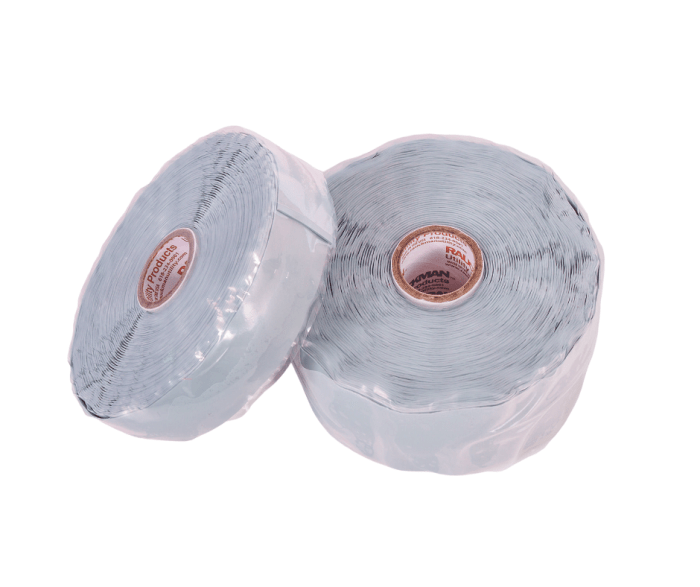

Squirrel Tape Cat No. RFT-100G

1″ Wide Squirrel Tape Cat No. RFT-100G

Squirrel Tape provides superior electrical insulation — The tape has a rectangular cross section of uniform thickness and as a high quality electrical tape it is ideal for electric utility applications.

Self-Fusing Silicone Tape / Squirrel Tape™ Features:

  • Resists moisture, oxygen, and ozone to assure consistent high insulation values

  • Conforms smoothly when wrapped around complex shapes

  • Bonds to itself within 24 hours

  • Dampens vibration and resists heat and mechanical shock

  • Inherently flame resistant, UV resistant and corona resistant

  • Will not leave adhesive residue when removed

Cat No. / Specs.

Cat No.DescriptionWidth
Length
Thickness
ColorUnits in
Std. Box
RFT-100G1" Wide Squirrel Tape1" (25.4 mm)
36' (12m)
0.030" (30 mil)
Grey1
RFT-200G2" Wide Squirrel Tape2" (50.8 mm)
36' (12m)
0.030" (30 mil)
Grey1
SpecificationValueStandard
Thickness:30 mil (0.030")-
Operating Temperature:-65°F up to 500°F-
Dielectric Breakdown:881 v/milASTM D-149
Max Voltage Rating:15 kV
1 Layer with 2/3 overlap
-
35 kV
2 Layer with 2/3 overlap
-
Thermal Stability:356°F-
Volume Resistivity:1013 Ω-cm min.ASTM D257
Self Adhesion:2 ppi min. (3.5 N/cm)ASTM D2148
Hardness:50±10 Shore AASTM D2240
Moisture Absorption:0.9%
46 hrs. in H2O at 70°F
-
Bonding Period:24 Hours-
