One-Piece Tangent Cover

One-Piece Tangent Covers

MADE IN THE USA

MADE IN THE USA

Description

Tangent Covers Minimize Animal-Related Outages!

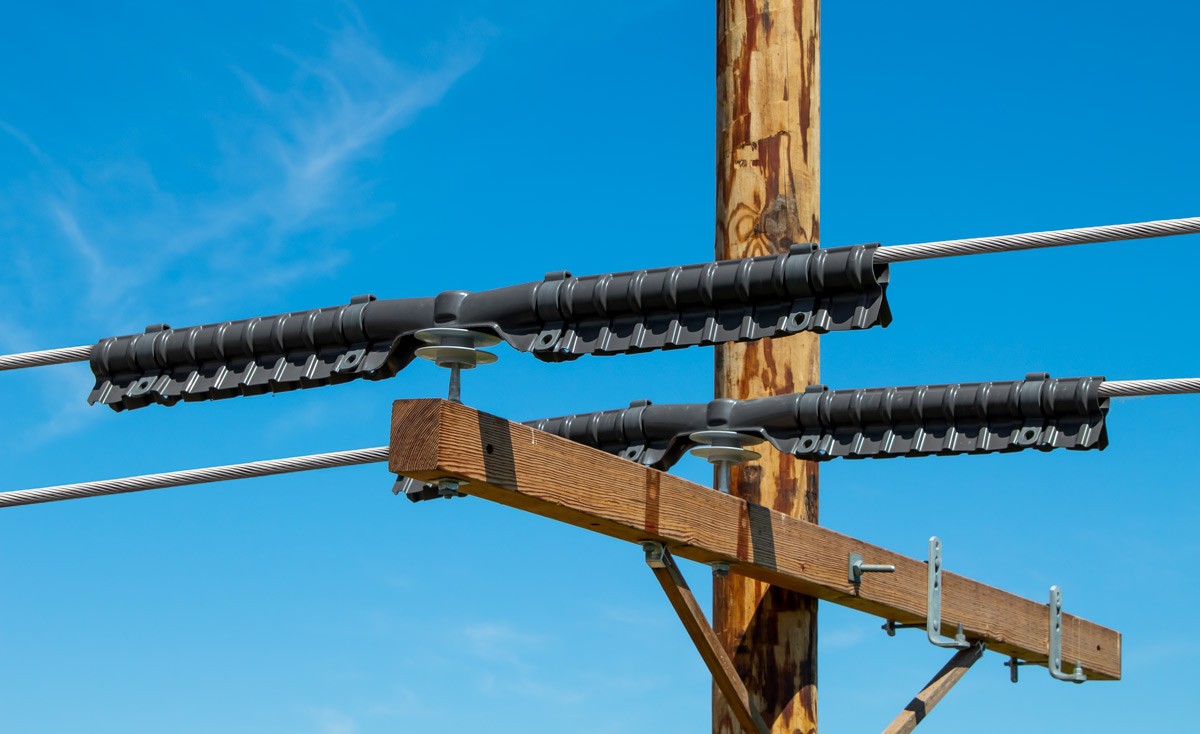

One-Piece Tangent Covers are for wildlife incident reduction of perching birds and other animals on electric utility pole cross arms.

The covers are molded from an engineered polypropylene flame retardant resin matrix formula and part of Rauckman’s animal mitigation devices.

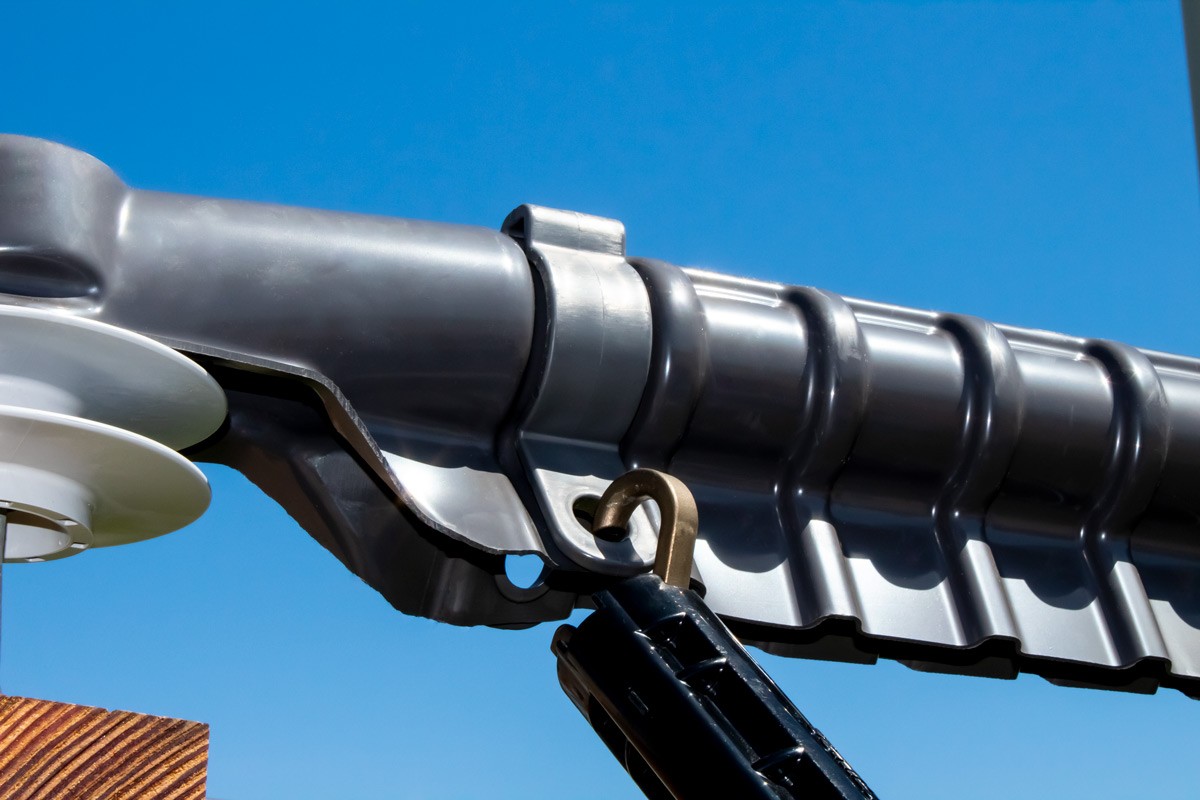

Tangent covers can easily be installed and removed using a shotgun style hotstick.

Easy Installation and Removal

Tangent Covers Features:

  • Voltage Application Voltage up to 38 kV System Voltage

  • UL — Self extinguishing UL 94 V-0 flammability rating

  • UV — Ultra violet resistant material

  • Installation — Easy installation and removal

  • Installation — No springs, latches or hinges

  • Tangent Covers are MADE IN THE USA

For more information or to place an order:

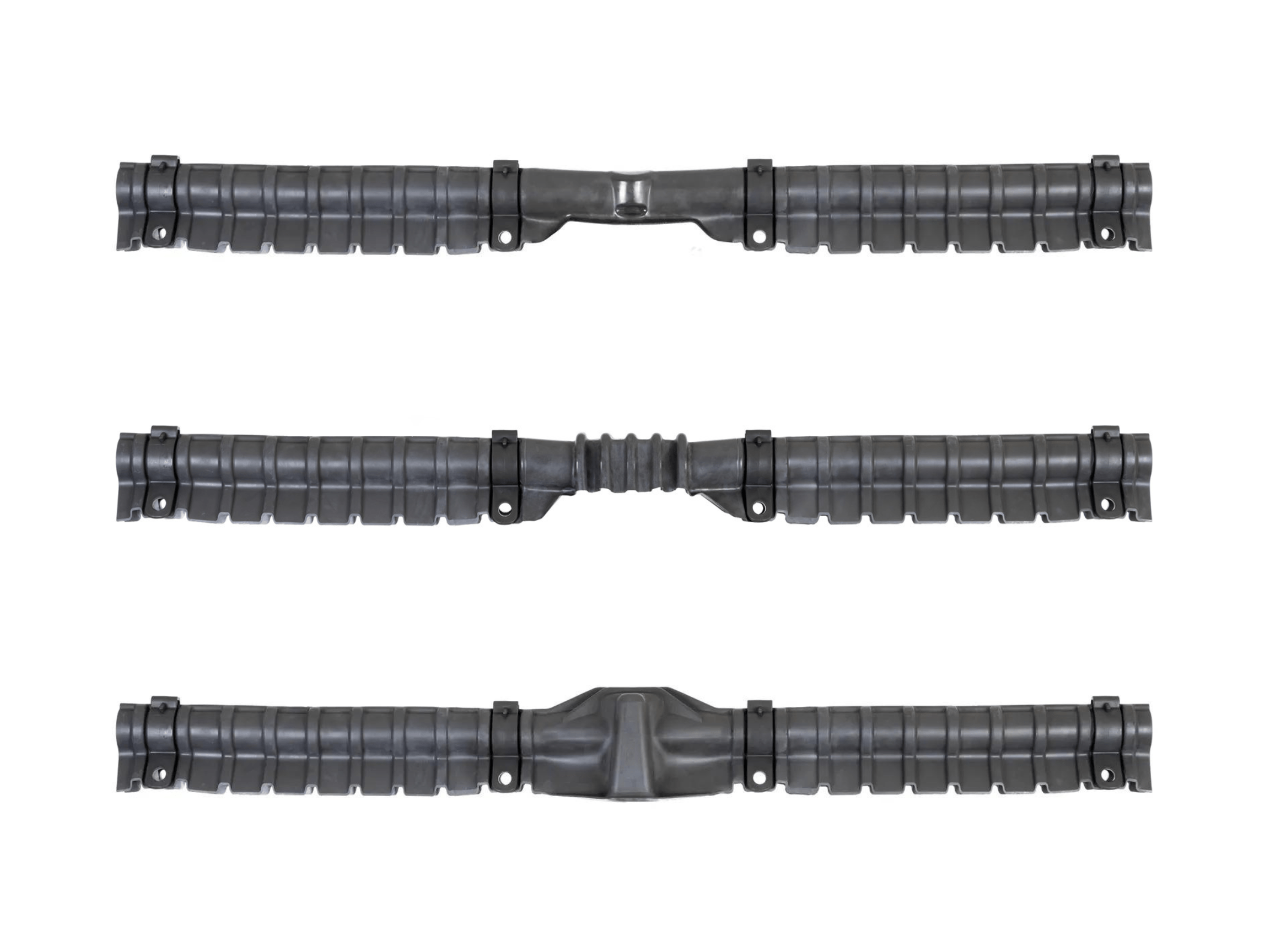

Cat No. / Specs

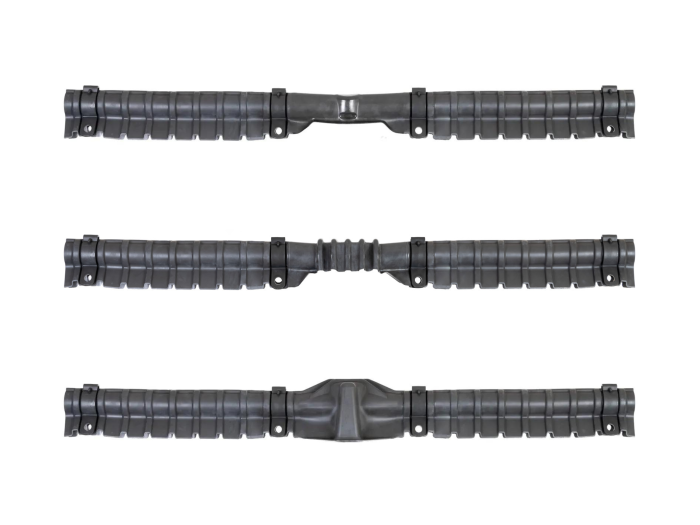

Catalog NumberDescriptionMax Voltage ApplicationLengthColorWeight

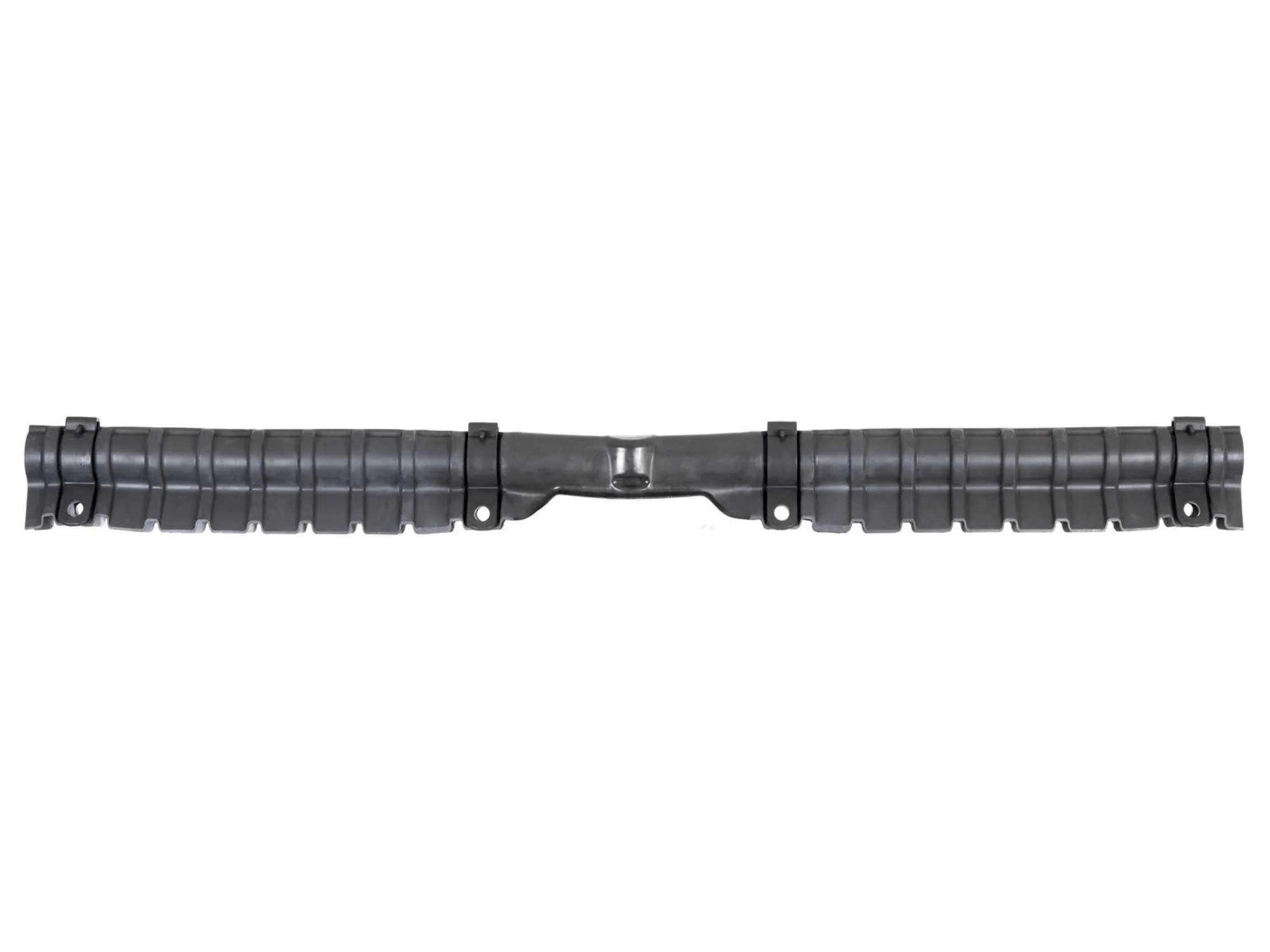

W-TCHT60STOne-Piece Tangent Cover, Universal Application, Straight or Side Tie38 kV60"Grey3.1 lbs.

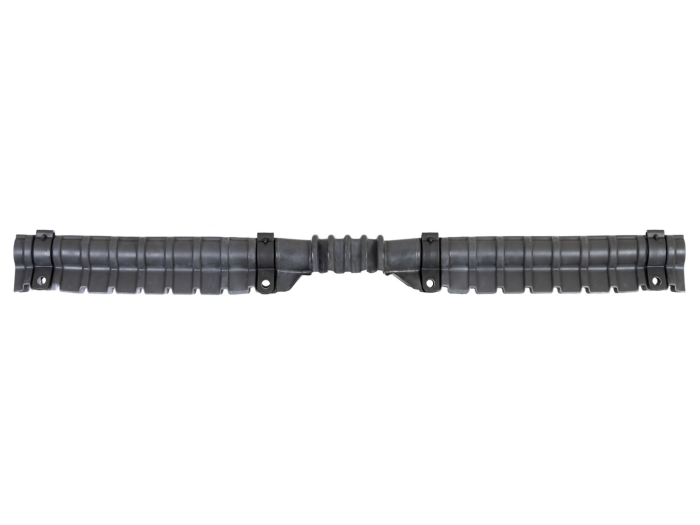

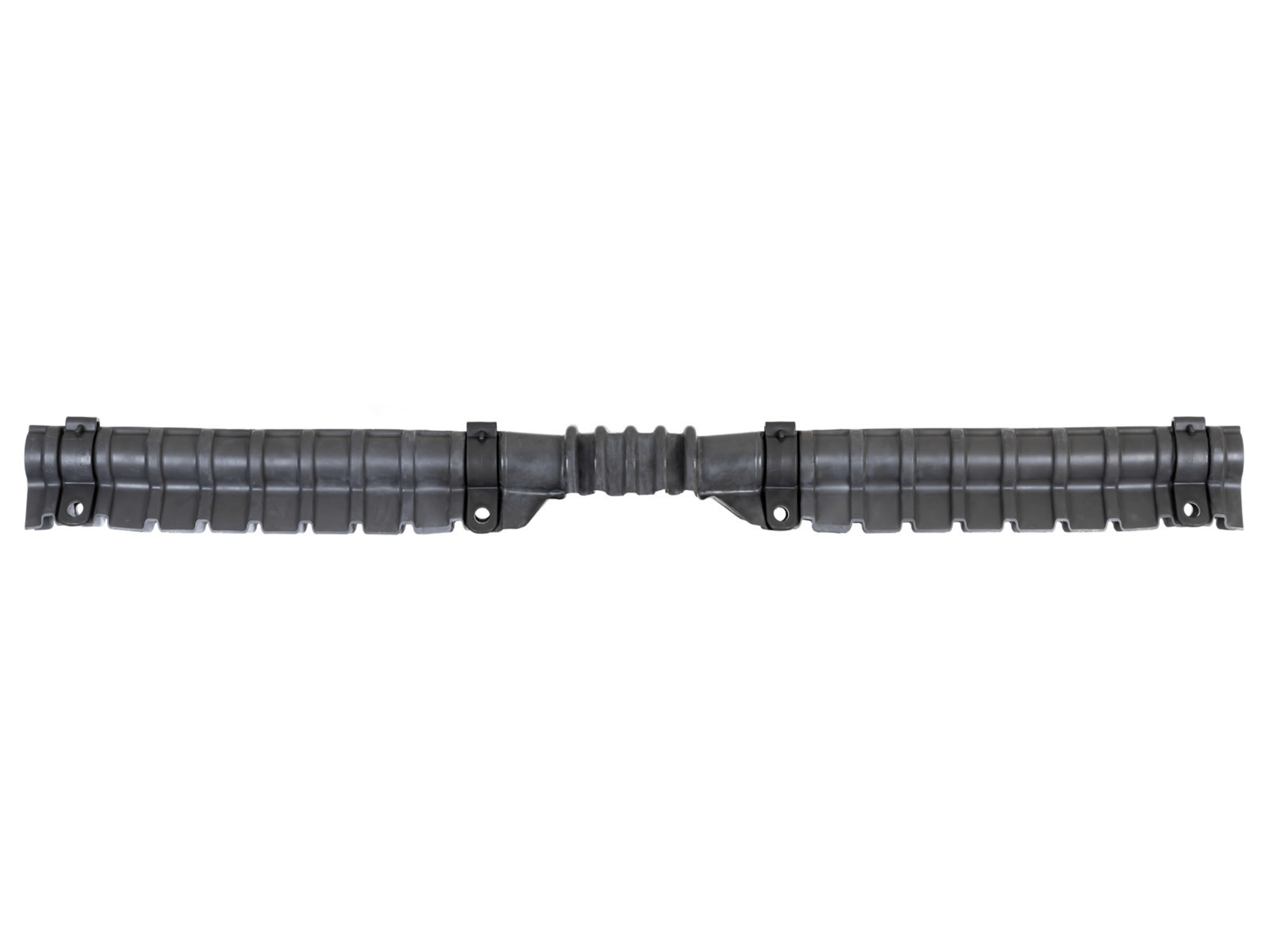

W-TCHTC60One-Piece Tangent Cover, Tie-Top C-Neck Insulator38 kV60"Grey3.1 lbs.

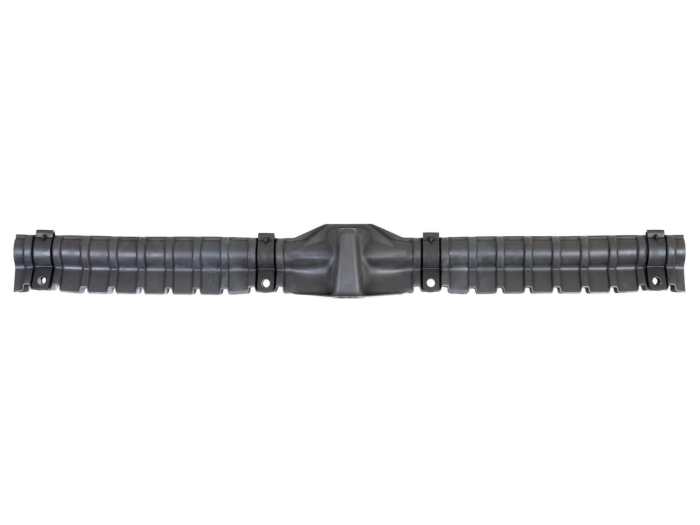

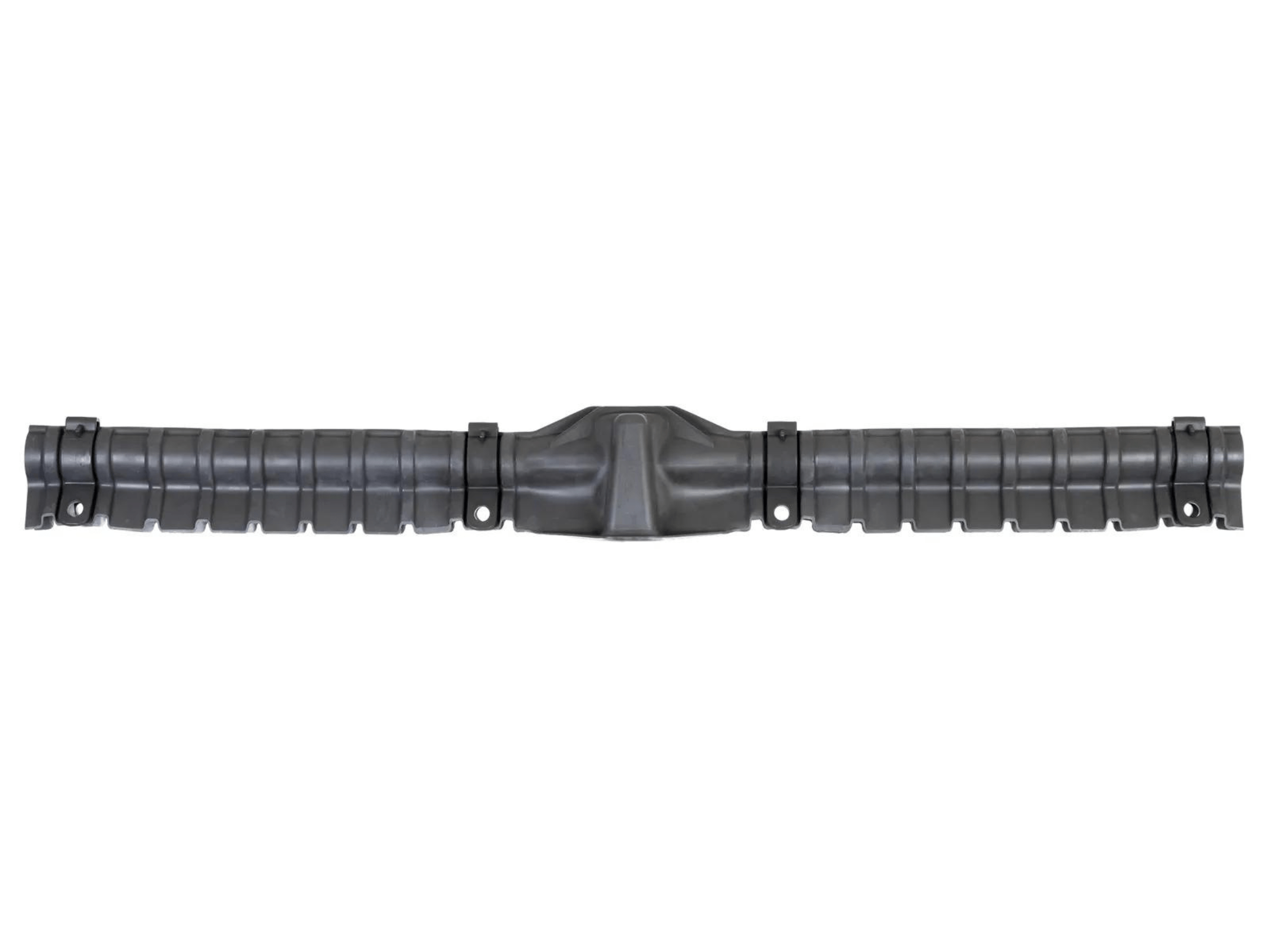

W-TCHV260One-Piece Tangent Cover, Hendrix Vise-Top Insulator38 kV60"Grey3.1 lbs.
