Heavy Duty Outrigger Pads

Durable, Reliable, Strong and Economical. 2″ thick 100,000 to 175,000 lbs. Strength Capacity.

In-House Manufacturing

MADE IN THE USA

MADE IN THE USA

Description

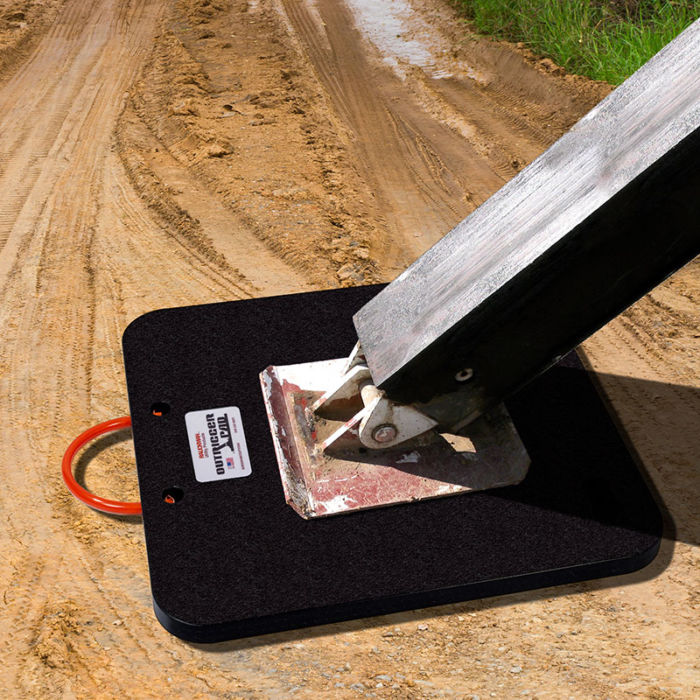

Heavy Duty Outrigger Pads are durable, reliable, strong and economical. They have a *strength capacity of 100,000 to 175,000 lbs. Outrigger pads provide a stable and solid platform for utility trucks, cranes, aerial platforms and other vehicles equipped with outrigger extensions.

In-House manufacturing allows for optimum delivery and design variations such as custom engraving. Heavy duty pads are 2.00″ thick and are available in many sizes. See “Specifications” tab for for model numbers and sizes.

Outrigger Pad by Rauckman Utility Products
*Other Weight Classes Available.

Heavy Duty Outrigger Pads Features:

  • Made of 2″ thick Ultra High Molecular Weight (UHMW) Polyethylene. The pads have rough non-slip surface on both sides.

    Rough Non-Slip surface on both sides of the pads

    Rough Non-Slip surface

  • Extra Long Life and Stronger than Wood Pads

  • Will not absorb moisture and excellent performance in the most severe environments

  • Tough Hi-Visibility handles hold shape to provide easier gripping and tangle-free storage

    Tough Hi-Visibility handles hold shape to provide easier gripping and tangle-free storage

    Tough Hi-Visibility Handles Hold Shape

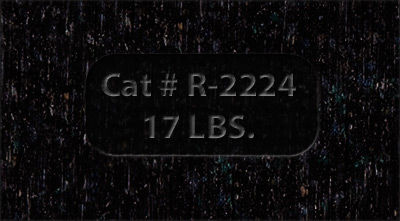

  • Catalog no. and weight permanently engraved on each unit

    Cat no. & weight engraved on

In-House Fabrication / Custom Markings & Engraving

  • Our Heavy Duty Outrigger Pads are fabricated in-house in our facilities in Belleville

  • Custom sizes available. We have a large inventory and quick delivery.

  • Custom engraving and marking are available. We can put your logo on the pads or engrave your inventory part numbers on our heavy duty outrigger pads. Contact us for details.

    Custom Engraving and Marking

    Custom Engraving & Marking

  • Standard color is black.

    STANDARD COLOR BLACK
  • Optional Colors are Yellow and Orange. Contact us for minimum order quantity.

    OPTIONAL COLOR YELLOW
    OPTIONAL COLOR ORANGE

Specifications

Following table provides Dimensions, Shape & Weight of the pads. For complete specifications please refer to the product brochure (Download Document Tab).

Catalog No.WidthLengthThicknessShapeWeight lbs.
R-1515215"15"2.00"15
R-1818218"18"2.00"20
R-1919219"19"2.00"24
R-2224222"24"2.00"36
R-2424224"24"2.00"38
R-3030230"30"2.00"60
R-3636236"36"2.00"86
R-4242242"42"2.00"120
R-4848248"48"2.00"150
R-30230" Diameter-2.00"45
R-36236" Diameter-2.00"68
R-42242" Diameter-2.00"92
R-48248" Diameter-2.00"120
